Rescue parachute - 12m2 / 129ft2
OP17105
New product

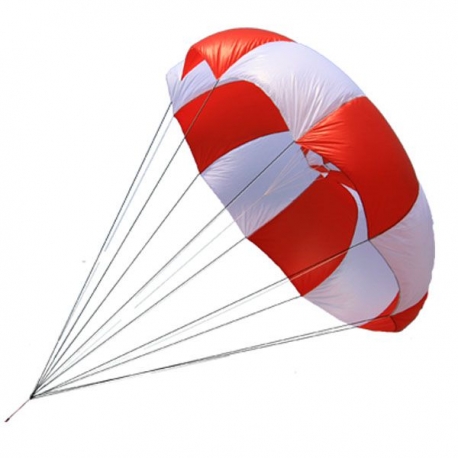

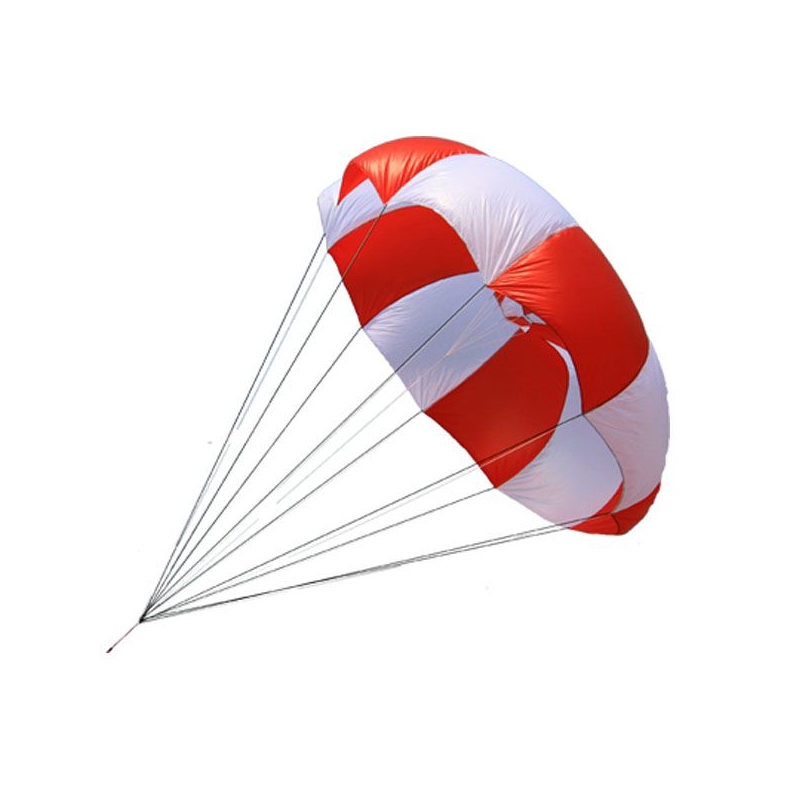

A 12m2 (129ft2) rescue parachute dedicated to drones with a total flight weight of 8 to 12kg (17.6 to 26.5lb) that will allow you to have an impact energy under 69J.

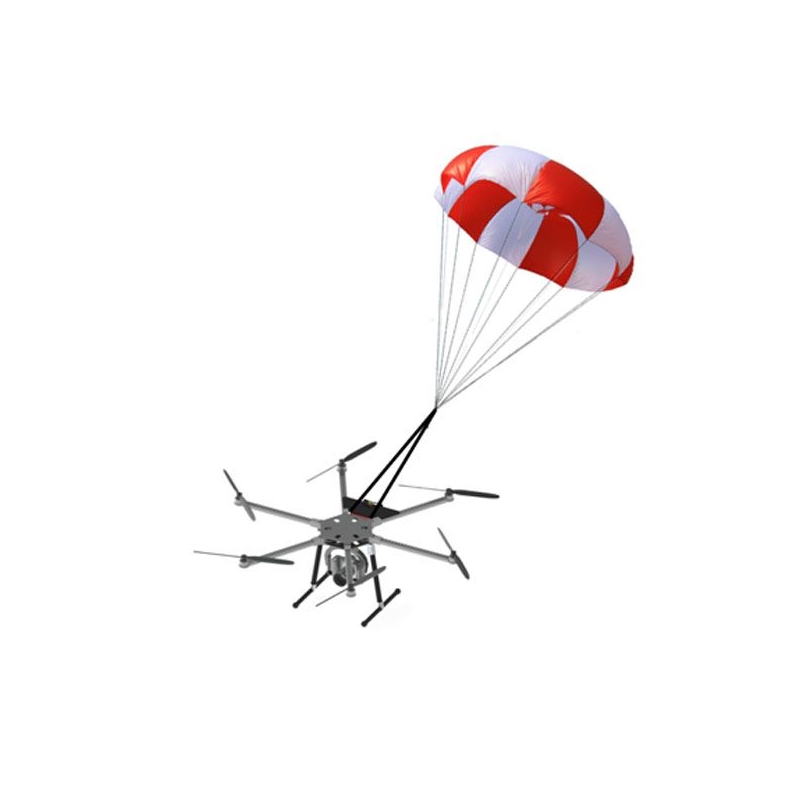

This parachute is compatible with all kinds of drones, it unfolds on order in a split second to ensure a smooth landing after a maneuver much less smooth! The container is attached to the parachute so that you can use it again immediately after a collapse. Really compact and light, very strong and equipped with reinforcements such as those you find on a full size parachute, no doubt this is going to be the perfect friend for your crazy trips or more wisely to efficiently protect your onboard photo / video equipment. The great thing is that you can use it on any kind of multirotors.
Features:
| Flat surface [m2] / [ft2]: | 12 / 129 |
| Total mass [gr] / [lb]: | 500 / 1.1 |

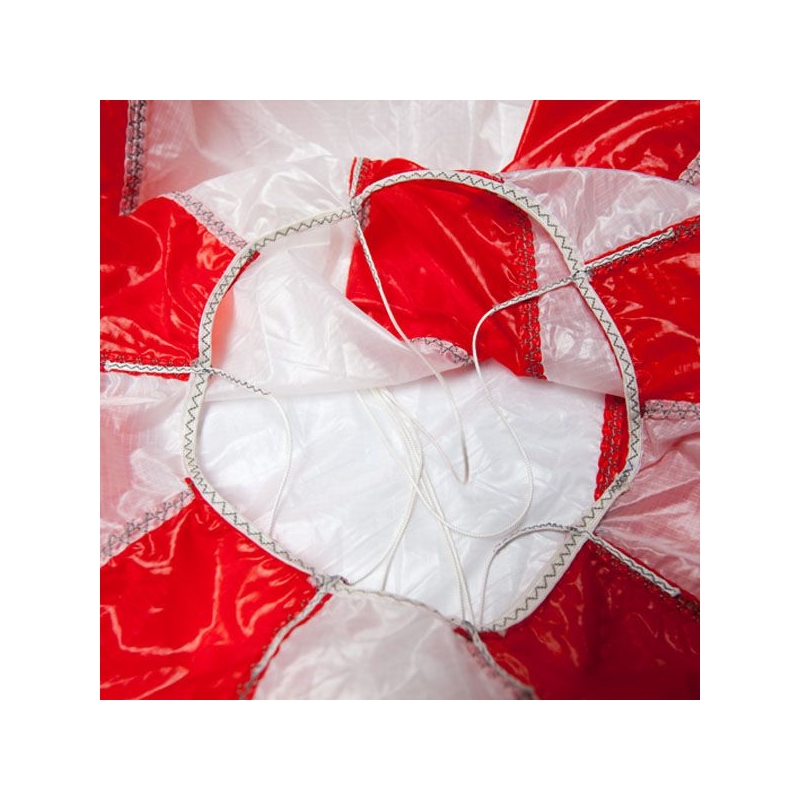

| Fabrics: | Special silicon nylon for rescue parachute |
| Tether strap material: | Nylon |
| Tether strap length [cm] / [in]: | 55 / 21.6 |
| Container dimensions [cm] / [in]: | 20x16x6 / 7.9x6.3x2.4 |
| Minimal shock resistance [kg] / [lb]: | 190 / 418.9 |
| Coefficient of lift: | 1.6 |
Indicative sink rate according to the total flight mass:
| Multirotor mass [kg]: | 8 | 9 | 10 | 12 | 15 | 20 |
| Sink rate [m/s]: | 2.6 | 2.7 | 2.9 | 3.2 | 3.5 | 4.1 |
| Sink rate [ft/s]: | 8.5 | 8.8 | 9.5 | 10.5 | 11.5 | 13.4 |
| Impact energy [J]: | 27 | 33 | 42 | 61 | 92 | 168 |
Included:
- 1 x 12m2 rescue parachute

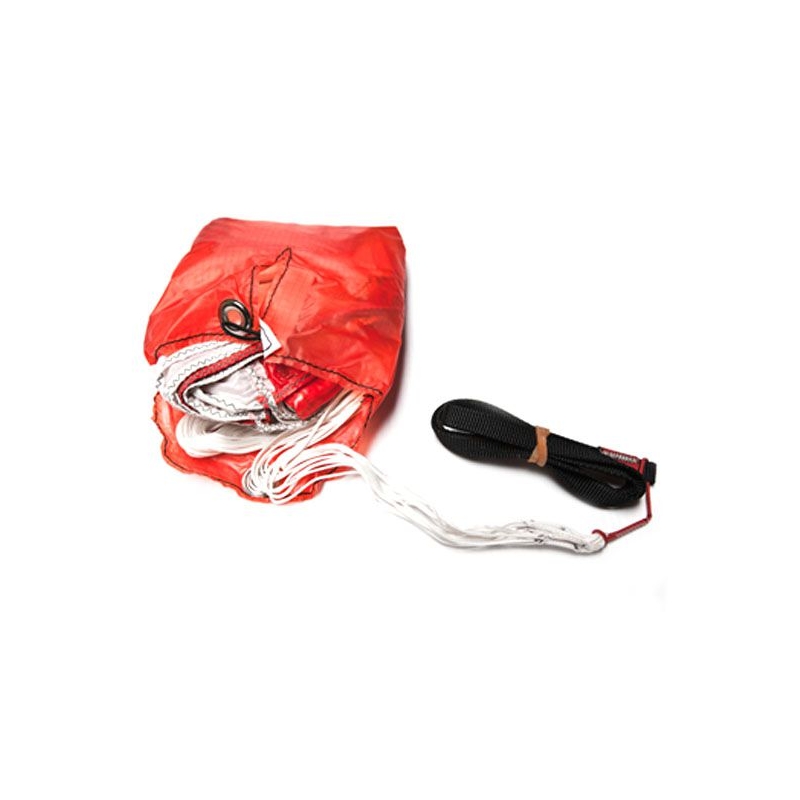

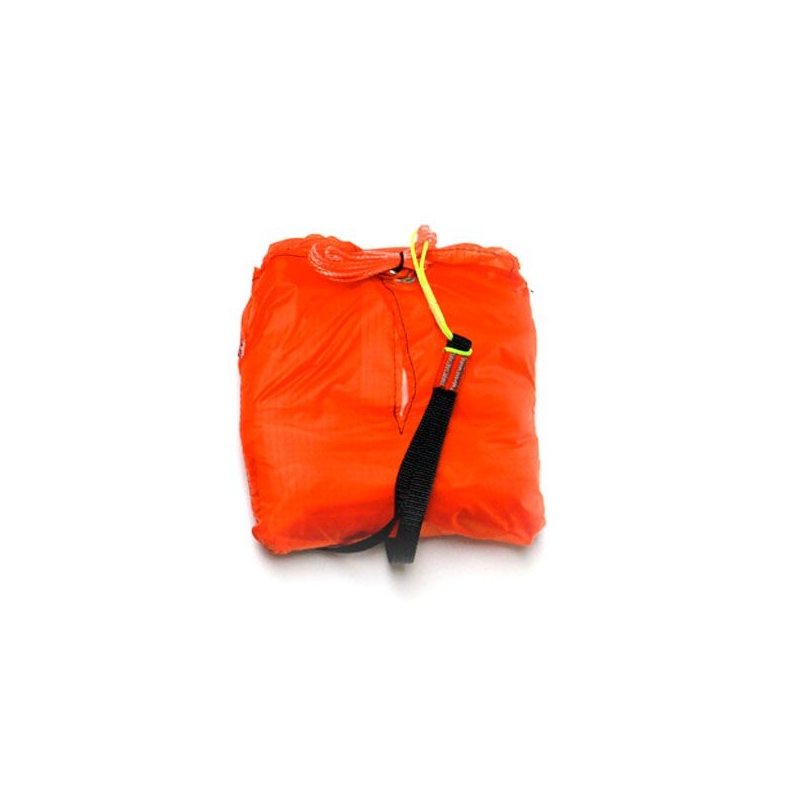

- 1 x container
Required and not included:
- Ejection system for parachute
