Rescue parachute - 4m2 / 43ft2
OP17103
New product

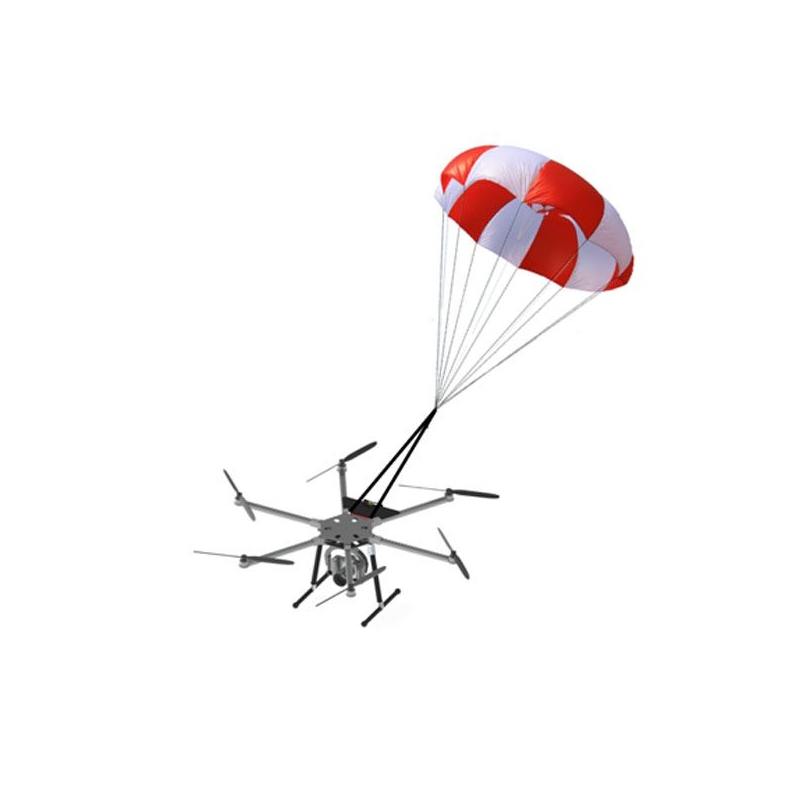

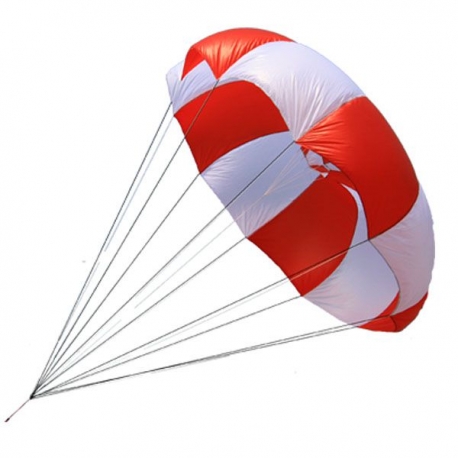

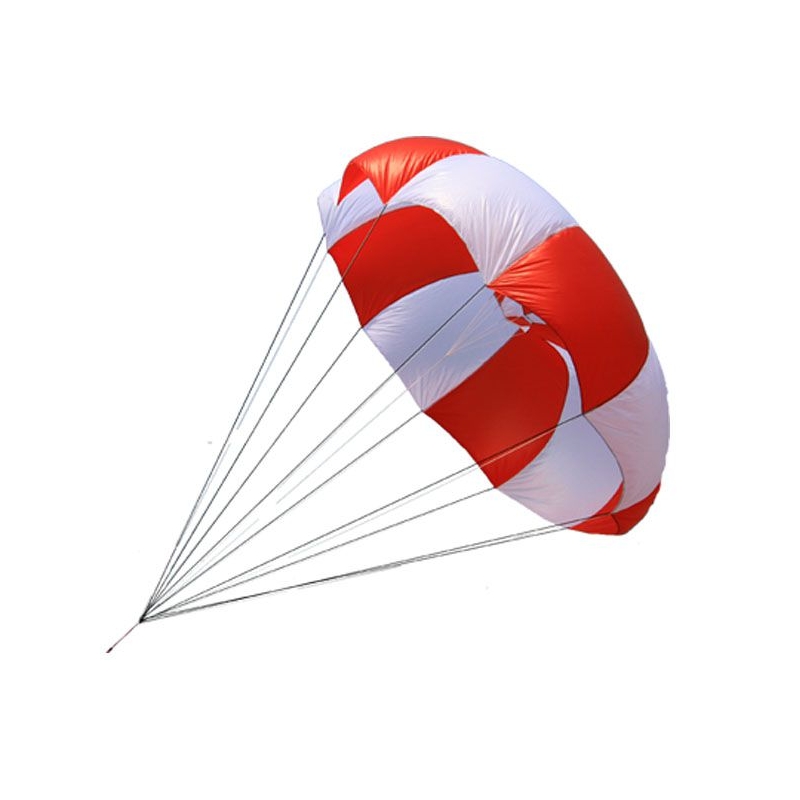

A 4m2 (43ft2) rescue parachute dedicated to drones with a total flight weight of 2 to 7kg (4.4 to 15.4lb) that will allow you to have an impact energy under 69J.
This parachute is compatible with all kinds of drones, it unfolds on order in a split second to ensure a smooth landing after a maneuver much less smooth! The container is attached to the parachute so that you can use it again immediately after a collapse. Really compact and light, very strong and equipped with reinforcements such as those you find on a full size parachute, no doubt this is going to be the perfect friend for your crazy trips or more wisely to efficiently protect your onboard photo / video equipment. The great thing is that you can use it on any kind of multirotors.
Features:
| Flat surface [m2] / [ft2]: | 4 / 43 |
| Total mass [gr] / [lb]: | 200 / 0.44 |
| Fabrics: | Special silicon nylon for rescue parachute |
| Tether strap material: | Nylon |
| Tether strap length [cm] / [in]: | 30 / 11.8 |
| Container dimensions [cm] / [in]: | 14x14x3 / 5.5x5.5x1.8 |
| Minimal shock resistance [kg] / [lb]: | 130/ 286.6 |
| Coefficient of lift: | 1.6 |
Indicative sink rate according to the total flight mass:
| Multirotor mass [kg]: | 2 | 3 | 4 | 5 | 6 | 7 |
| Sink rate [m/s]: | 2.6 | 2.9 | 3.4 | 3.8 | 4.1 | 4.4 |
| Sink rate [ft/s]: | 8.5 | 9.5 | 11.1 | 12.5 | 13.4 | 14.4 |
| Impact energy [J]: | 6 | 12 | 23 | 36 | 50 | 68 |
Included:
- 1 x 4m2 rescue parachute
- 1 x container
Required and not included:
- Ejection system for parachute
