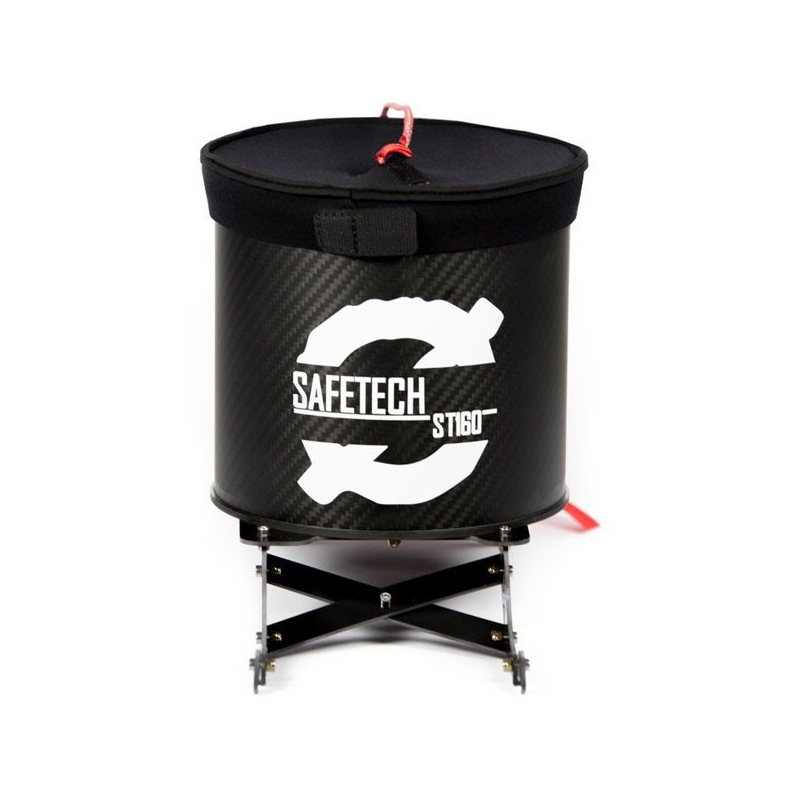

Parachute kit Safetech - ST160 + 15m2 parachute - (mass ≤ 40kg)

OP17580

New product

This new parachute rescue system will allow you to secure a drone up to 40kg (88.2lb) in any circumstances.

More details

In stock

1 239,00 €

Price excluding taxes : 1 032,50 €
VAT : 206,50 €

Delivery service

Logo de service de livraison

Payment methods

Logo de solutions de paiement

Drone Parachute Kit Safetech ST160 with a 15m2 parachute

  • Super fast deployment: 0.8 à 1.5s
  • Low sink-rate :  2.8 to 5.2m.s
  • Only 1130gr / 2.5lb
  • Easy to install
  • Controlled with a simple PWM signal
  • Parachute ready to reuse in few minutes after deployment
  • Tube made of carbon
  • Fixation lines made of Kevlar
  • Universal mounting
  • Locked for the transport

Pioneer in the drone rescue parachutes development, Opale Parachutes introduces its brand new range of Safetech® products.

A simple and groundbreaking technology

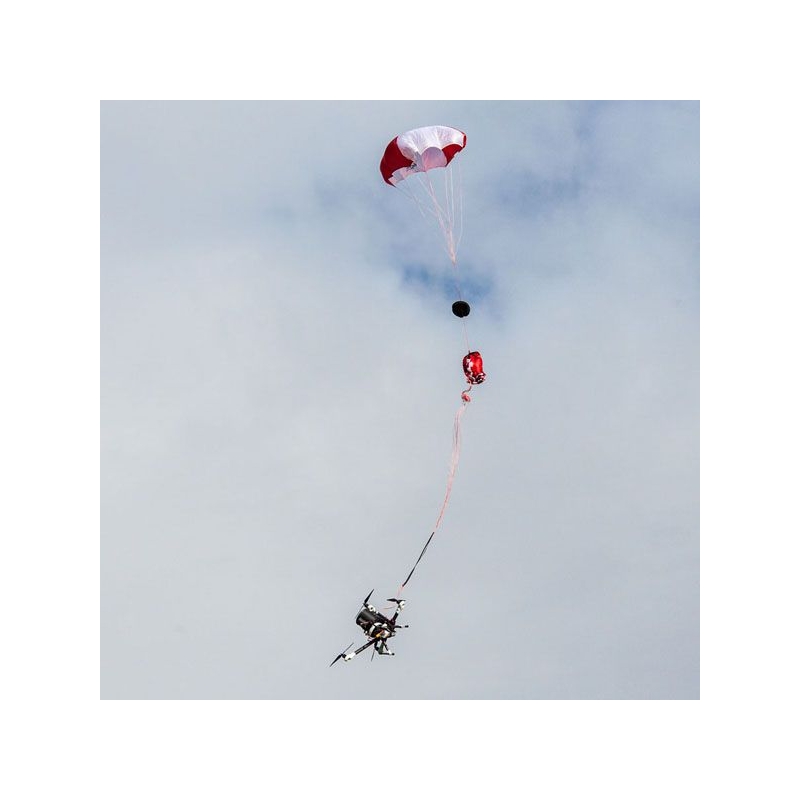

This new parachute rescue system will allow you to secure your drone in any circumstances.

Thanks to its new ejection technology, combined with the ST60, the main parachute is ejected and deployed between 0.8s - 1.5s, with a deployment height between 8 and 15 meters. Unlike the competitors’ systems, the Safetech® does not apply a permanent pressure on the parachute, which allows to guarantee a safe ejection, a super fast deployment and also a longer parachute shelf life, without repackaging it every week.

A simple and fast fixation allows an universal mounting on all machines available on the market.

Heavy duty resistance

The rescue parachute strap is made of Aramid / Kevlar, ensuring a rupture resistance of 300kg (661lb). The lines and the strap are knots free, which allows to have a 100% mechanical resistance and an outstanding finish, for an optimal lifespan.

The parachute is made of the same quality standards than a rescue parachute ULA. The fabrics have a silicon coating, with a really low mass (only 32g/m2), that offers an extremely light system.

A low impact energy

A new parachute geometry was especially developed in order to offer the lightest rescue system, a compact, a flight steadiness and an opening efficiency. You will benefit of a low sink-rate with a maximal impact energy of 540J for a 40kg (88.2lb) drone weight, with a rescue parachute kit only wheighing 1130gr (2.5lb).

The result of this low impact energy will allow you to easily registrate your machine regarding your airplane country regulations.

Security, safety and reliability pledge

A market analysis allows to quickly understand the Safetech® technology benefits :

  • Pyrotechnic free: Air transport and maintenance routine easy and safe, Safetech® prevents uncontrolled explosion risk.
  • The parachute is free from  permanent pressure: Shelf life increased, super fast and efficient deployment.
  • Fuse system free: no useless battery weight, deployment time shorter and optimized, no Lipo battery inflating risk and no fire risk.

So you will understand, the Safetech® technolgy will offer the best safety and reliability standards to protect your drone in any situations, with a very competitive price.

Features:

  • ST160 tube dimensions: 154x160mm / 6.1x6.3in
  • ST60 tube dimensions: 90x60mm / 3.5x2.4in
  • Material: Carbon
  • Total weight: 1130gr / 2.5lb
  • Servomotor connector: UNI
  • Signal: PWM compatible with a transmitter or a stand-alone module
  • Tension : 4.8 to 7.2v
  • Flat area: 15m2 / 161ft2
  • Lines : Dynema / Spliced Aramid Kevlar (no knot)
  • Fabrics: 32gr/m2 with silicon coating
  • Fixation strap Aramid 300daN (300kg / 661.4lb)

Indicative falling speed according to the total flight mass for a 15m2 (161ft2) parachute:

Multirotor mass [kg]:12151820253040
Sink rate [m/s]:2.83.23.53.74.14.55.2
Impact energy [J]:4776110137210303540

Included in this kit:

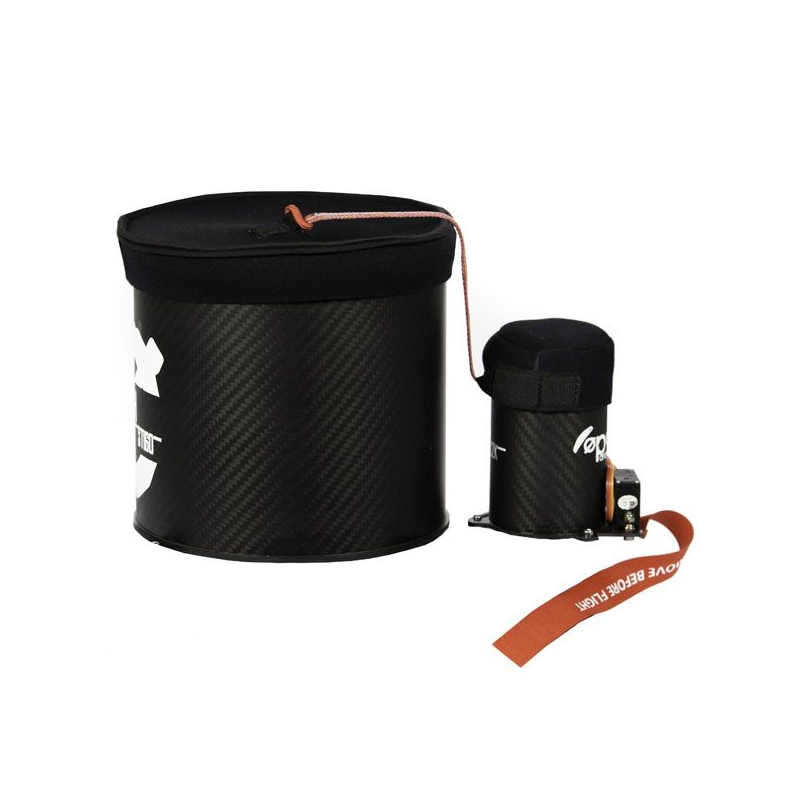

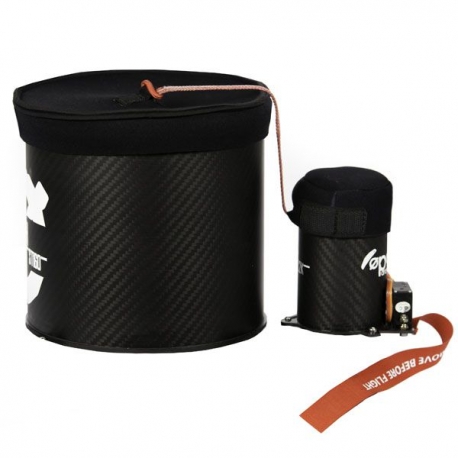

  • 1 x Safetech ST160 ejection tube
  • 1 x Safetech ST60 ejection tube
  • 1 x 15m2 parachute
  • 1 x 1m2 parachute
  • 1 x fixation strap
  • 1 x servomotor
  • 1 x hardware and accessories kit

Required and not included:

  • Transmitter or stand-alone module
  • 4.8 to 7.2V battery
